CONTROL PANEL:
In house electronic and electrical assemblies for the machine plus a timer circuit to control the speed.
POWER LOAD:- (THREE PHASE SUPPLY)
1 HP DC drives for machine roller.
1 HP AC motor for air blower.
4.5 KW (5.5 HP) heater.
Total connecting load - 7.5 HP (THREE PHASE SUPPLY)
DRIVE SYSTEM:
The machine is provided with DC motor (Thyristor Controlled) coupled to heavy-duty reduction gearbox via chain and sprocket through the main shaft.
HEATING SYSTEM:
Forced heated air through nozzles at the nips.
UTILITIES TO BE PROVIDED BY CUSTOMER:-
4 Sq. mm 4 Core copper cable for main supply to the machines with proper earthling.
OUT PUT:
15 to 60 Mtrs. /Min. at max. Speed (Depending on operating Conditions)
SIZE OF THE MACHINE:

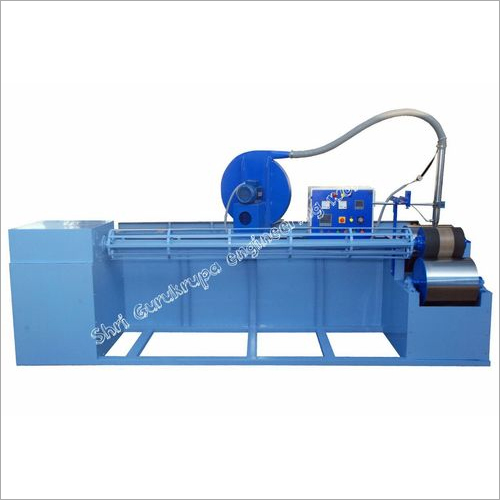

Side sealing machine 1.2 Mtr. long for 2-meter fabrics.
